Wi-Fi Module
WMIOT604
Product introduction

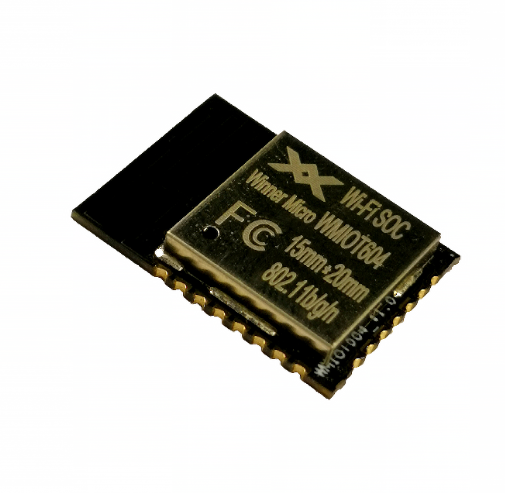

WMIOT604 is a Wi-Fi reference design module based on IoT Wi-Fi SoC chip W600, which has stamp hole interface and supports all the interface of W600. Such module has small size and is easy to develop. The module can be easily applied to smart appliances, smart home, health care, smart toy, and wireless audio & video, industrial and other IoT fields.

  • Product introduction
  • Detailed specification
  • Technical documentation
  • Development tool
  • Software data
  • Video data

WMIOT604 is a Wi-Fi reference design module based on IoT Wi-Fi SoC chip W600, which has stamp hole interface and supports all the interface of W600. Such module has small size and is easy to develop. The module can be easily applied to smart appliances, smart home, health care, smart toy, and wireless audio & video, industrial and other IoT fields.

Interface

  stamp hole interface, spacing 1.5mmm

  Integrated 2 UART interface, support RTS/CTS, baud rate: 1200bps~2Mbps

  Integrated one high speed SPI controller, operating frequency: 0~50MHz

  Integrated PWM controller, max output/input frequency 20MHz

  Integrated I²C controller

  Integrated I²S controller

  Integrated GPIO controller

Wi-Fi

  Support IEEE802.11 b/g/n

  Support frequency range: 2.4~2.4835 GHz

  Support Wi-Fi WMM/WMM-PS/WPA/WPA2/WPS

  Support Wi-Fi Direct

  Support EDCA channel access

  Support 20/40M bandwidth

  Support STBC, Greenfield, Short-GI and reverse transmission

  Support RIFS interframe space

  Support AMPDU、AMSDU

  Support IEEE802.11n MCS 0~7, MCS32, transmission rate is up to 150Mbps

  Support Short Preamble in 2/5.5/11Mbps

  Support HT-immediate Compressed Block Ack, Normal Ack, No Ack

  Support CTS to self

  Support STA/AP/AP+STA function

  Support up to 32 multicast networks with different encryption methods in BSS

  As AP in BSS, the sum of sites and groups is up to 32 and in IBSS is up to 16

Others

  Programmable GPIO control signals

  Support AT+ instruction protocol(UART interface) base on ASCII

  Support network protocol: TCP/UDP/ICMP/DHCP/DNS/HTTP

  Support DHCP Server, DNS Server

  Support extensible WEB server

  Support firmware on line update

WMIOT604 SpecificationV1.0.1.pdf


Certification:

FCC ID-WMIOT604.rar

CE-RED-WMIOT604_V1.0.rar

RoHS-WMIOT604_V1.0.pdf


Technical support:bangze technology
